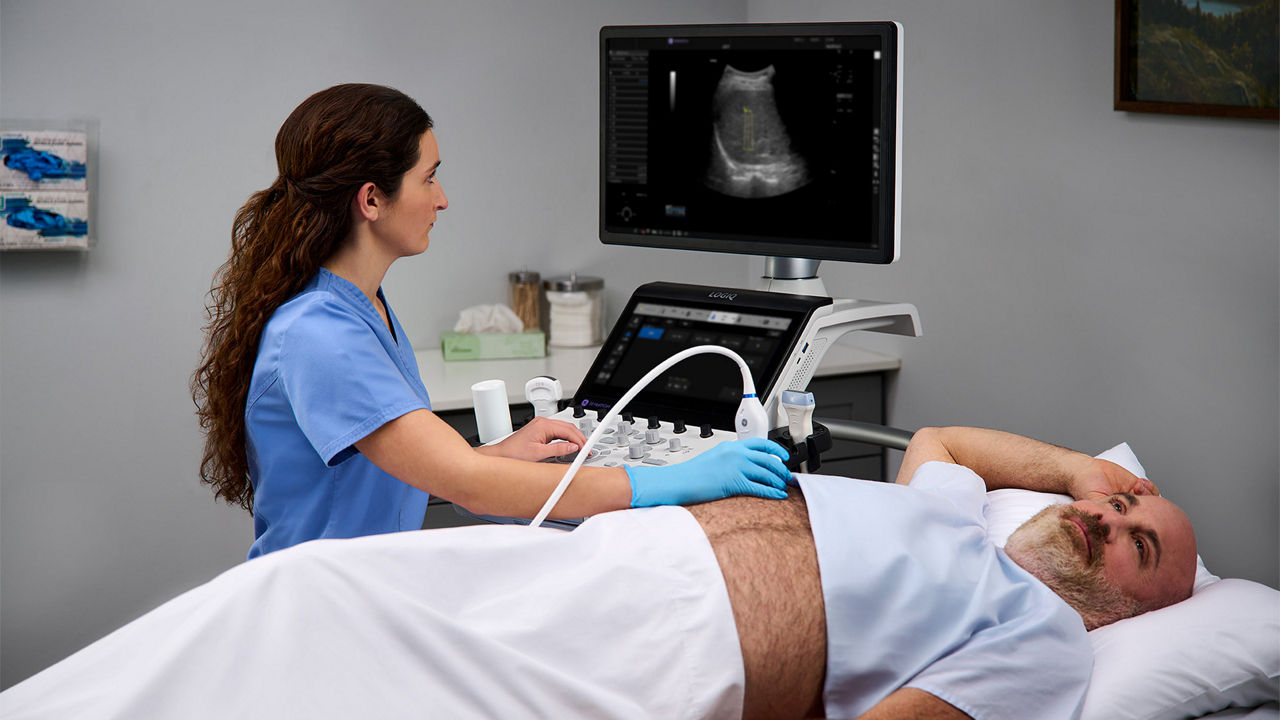

GE LOGIQ Totus

The GE LOGIQ Totus is a versatile, cart-based diagnostic ultrasound system designed to deliver high-definition imaging across multiple clinical specialties, including abdominal, vascular, musculoskeletal, cardiology, urology, and OB/GYN applications. Built on GE’s cSound architecture, this lightweight and highly mobile console combines premium image clarity with AI-driven productivity software. Designed for high-volume clinical environments, bedside care, and multi-department usage, it features a streamlined, ergonomic footprint, battery-powered scanning options, and seamless integration with wireless transducers to maximize diagnostic confidence and daily workflow efficiency.

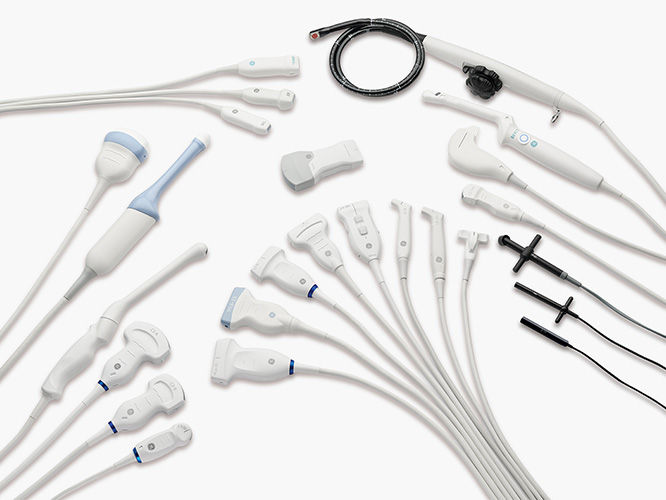

- C1-6-D: Convex Transducer (1.0 – 6.0 MHz) – Abdominal, OB/GYN, Vascular
- C1-6VN-D: Volume Convex Transducer (1.0 – 6.0 MHz) – Abdominal, OB/GYN, Volume Navigation
- C3-10-D: Convex Transducer (2.0 – 11.0 MHz) – Pediatric, Abdominal
- 9L-D: Linear Transducer (3.0 – 8.0 MHz) – Vascular, Small Parts, Pediatric
- L6-24-D: High-Frequency Linear Transducer (6.0 – 24.0 MHz) – Small Parts, Superficial MSK, Vascular
- ML6-15-D: Matrix Linear Transducer (4.0 – 15.0 MHz) – Breast, Small Parts, MSK, Vascular
- L4-20t-D: Button Linear Transducer (4.0 – 20.0 MHz) – Musculoskeletal, Small Parts, Interventional
- M5Sc-D: Matrix Phased Array Transducer (1.0 – 5.0 MHz) – Adult Cardiac, Abdominal
- 6S-D: Phased Array Transducer (2.0 – 8.0 MHz) – Pediatric Cardiac, Abdominal
- 12S-D: Phased Array Transducer (3.0 – 12.0 MHz) – Pediatric Cardiac, Neonatal
- IC5-9-D: Microconvex Endocavity Transducer (3.0 – 9.0 MHz) – OB/GYN, Urology
- RIC5-9-D: Real-Time 4D Microconvex Endocavity Transducer (4.0 – 9.0 MHz) – 3D/4D OB/GYN, Urology
- RAB6-D: Real-Time 4D Convex Transducer (2.0 – 8.0 MHz) – 3D/4D Obstetric, Gynecological, Abdominal
- 6Tc-RS: Transesophageal TEE Transducer (3.0 – 8.0 MHz) – Cardiac TEE
- Vscan Air CL: Wireless Dual-Probe Transducer – Curved/Linear Multi-Specialty Point-of-Care Imaging

cSound Architecture: Next-generation beamforming engine that delivers enhanced processing power, rapid data throughput, and high contrast resolution from surface tissue to deep structures.
XDclear Probe Technology: Advanced transducer architecture utilizing single-crystal technology and acoustic matching layers for increased penetration and high-definition signal bandwidth.
CrossXBeam & SRI-HD: Spatial compounding and high-definition speckle reduction imaging that enhance border definition and reduce artifact noise.

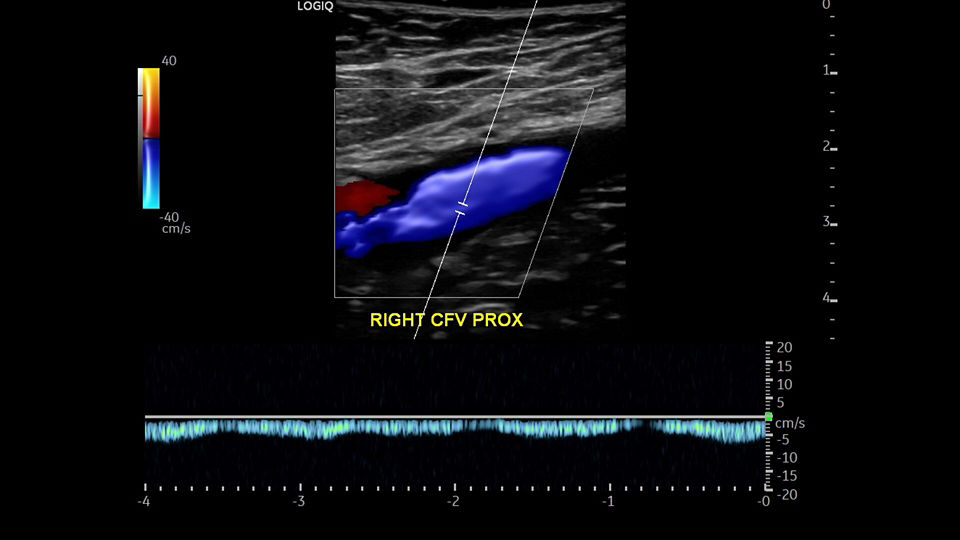

Radiantflow & MVI: Advanced microvascular imaging modalities providing 3D-like visualization of slow and low-velocity blood flow in small vessels.

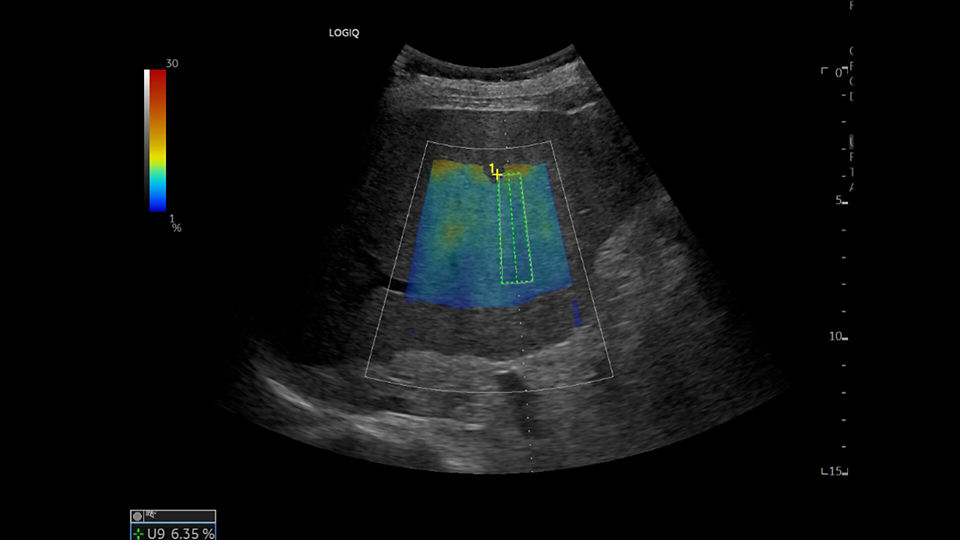

2D Shear Wave Elastography & UGAP: Non-invasive quantitative evaluation of tissue stiffness and hepatic steatosis with real-time quality maps.
Volume Navigation & Fusion Imaging: Combines real-time ultrasound with DICOM datasets (CT, MR, PET/CT) and needle-tracking tools for interventional procedures.
Auto Preset Assistant & Auto Abdominal Color: AI-powered workflow automation tools that automatically recognize anatomical structures and optimize color Doppler parameters in real time.

- Display: 23.8-inch high-definition widescreen LCD monitor (1920 x 1080 resolution) mounted on an articulating, height-adjustable arm.
- Touch Panel: 14-inch high-resolution color touchscreen interface with customizable layout and haptic feedback.
- Transducer Ports: 4 active probe connectors, plus support for wireless Vscan Air handheld probes.
- Storage: Integrated 1 TB Solid-State Drive (SSD) for image acquisition and local data management.
- I/O Ports & Connectivity: USB ports, Ethernet (RJ-45), digital video output, wireless LAN/Wi-Fi capability, DICOM 3.0 support, and optional USB foot switch.
- Physical Dimensions & Ergonomics: Height adjustable from 57.5 in (1460 mm) to 73.2 in (1860 mm); console width of 19.3 in (490 mm); weight approximately 161 lbs (73 kg) with swivel casters, wheel locks, and integrated front/rear transport handles.
- Power: Universal 100–240 VAC power supply with integrated battery pack for scan-on-battery functionality and standby operation.

AI-Assisted Measurement Tools: Automated calculation packages including Auto EF, Auto IMT, and AI-powered clinical tools powered by Koios DS for breast and thyroid lesion assessment.
Hepatic Assistant: Integrated multi-parameter workflow that unifies 2D Shear Wave Elastography and UGFF/UGAP measurements into a single structured report.
Scan Assistant & Raw Data: Customizable protocol automation scripts that guide clinicians through standardized scanning sequences while allowing post-processing adjustments on raw data files.
On-Board Reporting & DICOM SR: Comprehensive, specialty-specific reporting software featuring automated calculation summaries, structured reporting (OB/GYN, Vascular, Cardiac), and seamless cloud/PACS export.
LOGIQ Apps Integration: Enables mobile integration for remote control function, photo attachment, and automated report insertion using compatible smart devices.
