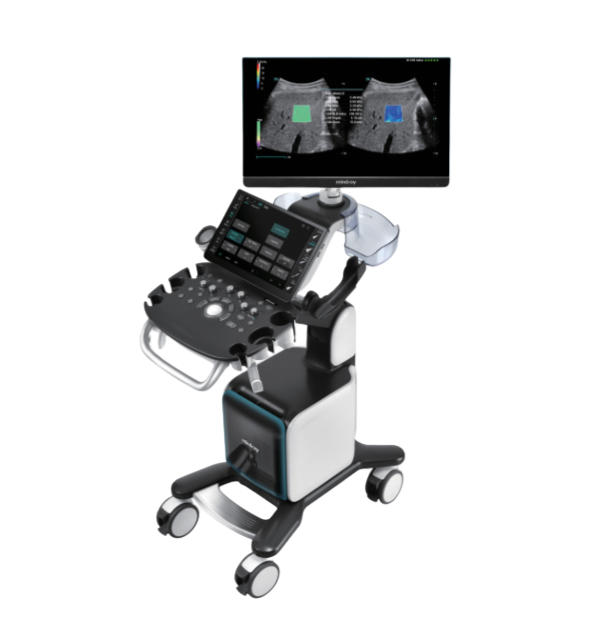

Mindray Consona N9

The Mindray Consona N9 represents the pinnacle of multi-specialty cart-based ultrasound imaging, engineered on the revolutionary ZST+ platform to transform diagnostic confidence across general imaging, shared service, cardiology, and women’s health practices. By transforming traditional beamforming into advanced Zone Sonography Technology+, the Consona N9 acquires and stores acoustic data with unprecedented speed, delivering exceptional spatial resolution, wide tissue penetration, and crystal-clear structural definition across deep and superficial examinations alike.

SC5-1U: Single-Crystal Curved Array Transducer (1.0 – 5.0 MHz) – Abdominal, OB/GYN, Urology, Radiology
L13-3U: High-Frequency Linear Array Transducer (3.0 – 13.0 MHz) – Small Parts, MSK, Vascular, Superficial
L14-6WE: High-Frequency Matrix Linear Transducer (6.0 – 14.0 MHz) – Vascular, MSK, Small Parts, Breast
SP5-1U: Single-Crystal Phased Array Transducer (1.0 – 5.0 MHz) – Adult Cardiology, Transcranial, Emergency Medicine
V11-3HU: Micro-Convex Endocavity Transducer (3.0 – 11.0 MHz) – Transvaginal, Transrectal, Early OB
SD8-1U: 3D/4D Volume Curved Array Transducer (1.0 – 8.0 MHz) – Obstetrics, Volume Gynecology

ZST+ Platform (Zone Sonography Technology+): Advanced channel-data-based beamforming technology that converts acoustic data into high-resolution images up to 10x faster than traditional beamformers.
iFusion & iNavigation Technology: Integrated real-time fusion imaging combining live ultrasound with CT/MRI scans for precise procedural guidance.
iBeam (Spatial Compound Imaging): Combines multiple scan angles into a single image to increase contrast resolution and improve visualization of subtle lesions.
iClear (Speckle Suppression Imaging): Advanced noise reduction algorithm providing smoother tissue textures and enhanced border definition.
HD Scope & Glare-Free Imaging: Amplifies signal processing within regions of interest to maximize subtle tissue differentiation.
Sound Speed Compensation (SSC): Automatically adjusts acoustic speed propagation in tissue to optimize focal clarity across diverse patient body types.

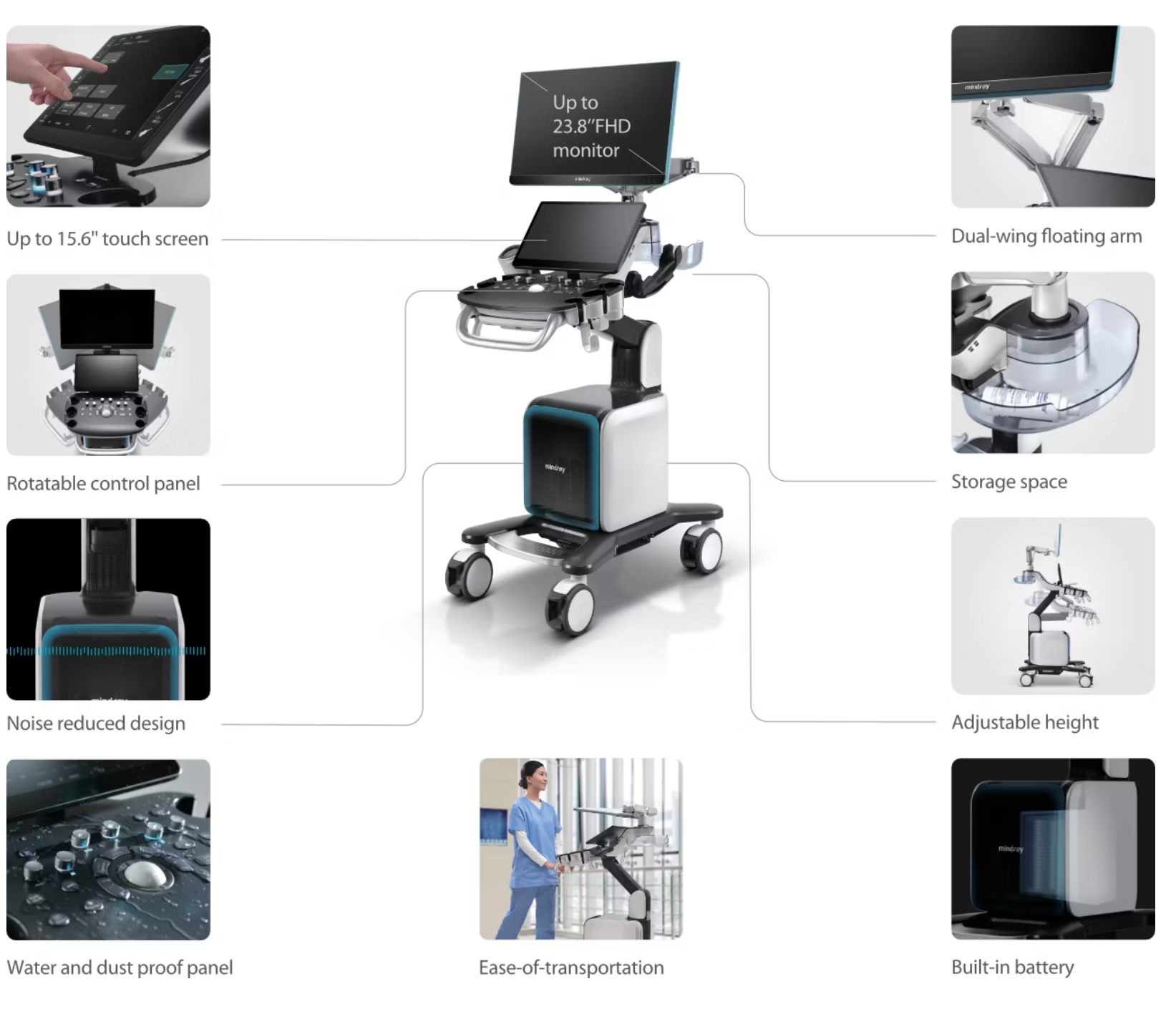

Monitor & Display: 21.5-inch or 23.8-inch High-Definition LED Monitor mounted on a dual-wing floating articulating arm.
Touchscreen: 13.3-inch ultra-responsive multi-gesture touch control screen.
Transducer Ports: 4 or 5 active, pinless transducer ports with LED illumination for easy probe switching.
Physical Architecture: Ergonomic cart design with motor-driven height adjustment, ultra-quiet operation, integrated gel warmer, and castors with central brake locks.
Digital Storage & Connectivity:
- 1 TB High-Speed Solid-State Drive (SSD)
- Digital I/O Ports: 4x USB 3.0 ports, HDMI, DisplayPort, Ethernet (RJ-45)
- Integrated Wi-Fi module and DICOM 3.0 compatibility (Store, Print, Worklist, MPPS, Structured Reporting)
Battery Power: Built-in rechargeable Lithium-ion battery supporting up to 90 minutes of continuous scanning and quick wake-up mode.

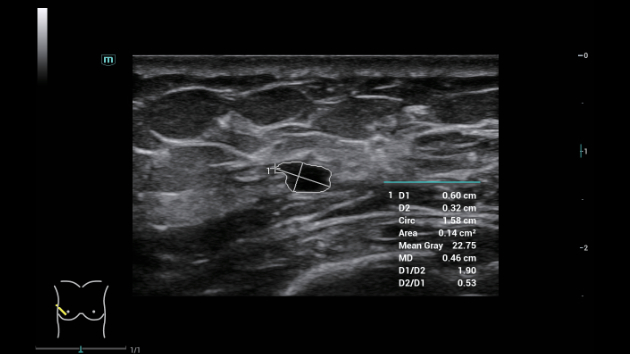

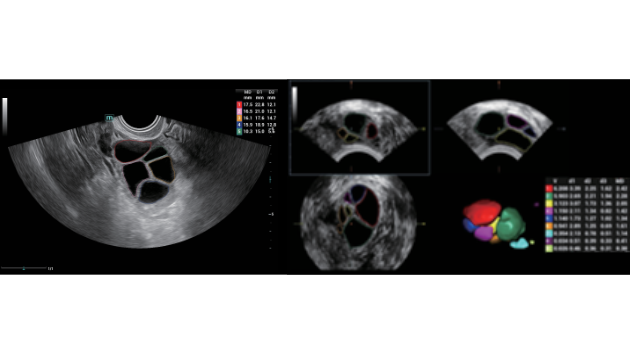

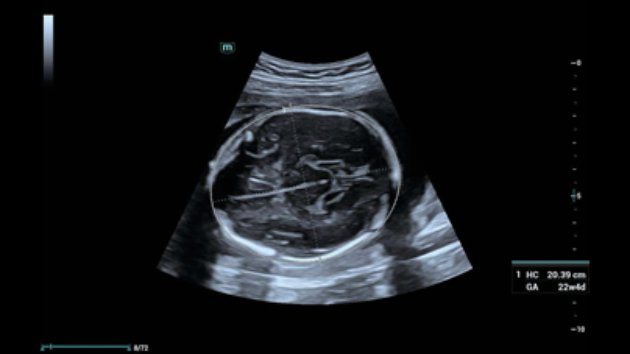

Smart ICare / Smart OB: AI-powered automated measurement tools for routine fetal biometry (BPD, HC, AC, FL, NT), significantly reducing scan time and operator variability.

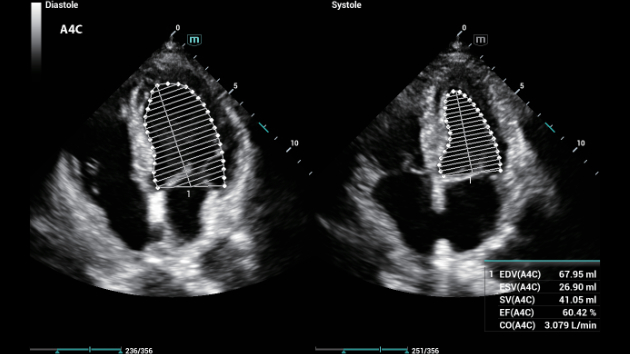

Smart Cardiac & Auto EF: Automated Left Ventricular Ejection Fraction calculations and strain imaging metrics for fast, reliable cardiac assessment.

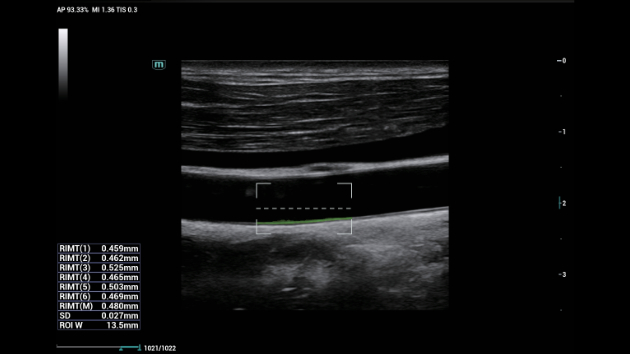

Smart Vessel & Auto IMT: Automated Intima-Media Thickness measurement for quick vascular risk stratification.
iMeasure & Auto Calculation Workflows: Automated Doppler trace, peak velocity, and clinical indices calculation in real-time.
iReport Customizer: Fully customizable reporting engine with automated population of measurement tables and direct export to PACS/EMR systems.
