The Samsung Medison R20 is a next-generation multi-specialty cart-based ultrasound system engineered for high-throughput clinical decision-making. Powered by Samsung’s proprietary Crystal Architecture™ and AI-driven image processing engines, the R20 combines advanced spatial resolution with deep penetration to streamline complex diagnostic workflows across general imaging, women’s health, and vascular applications.

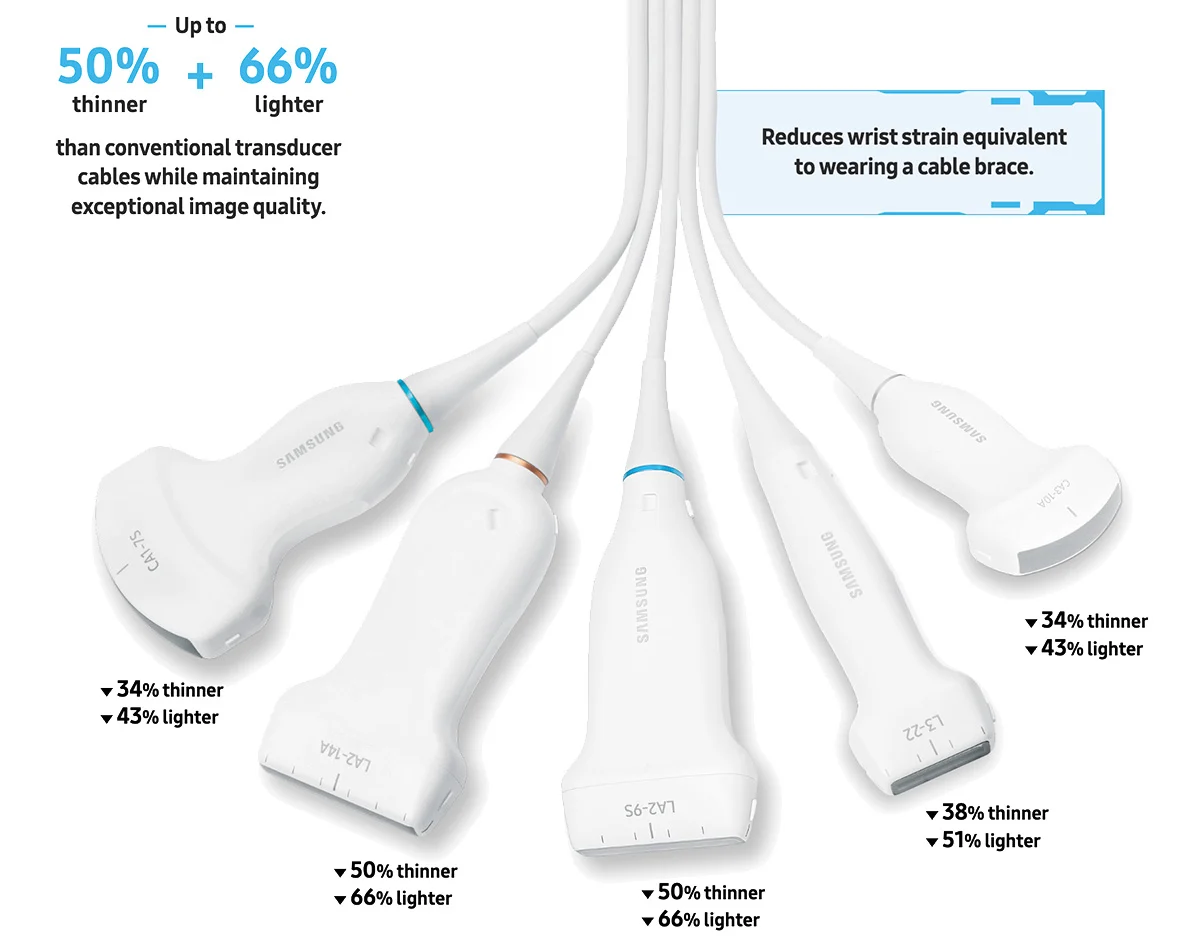

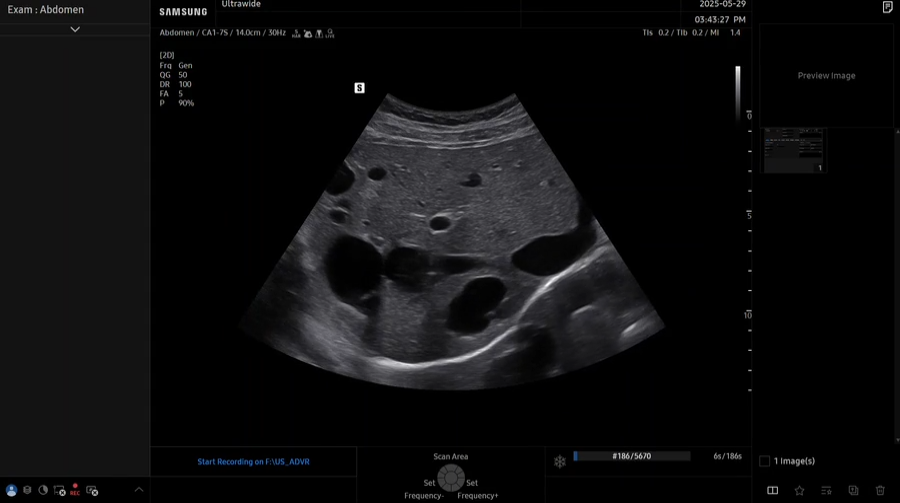

CA1-7S (Curved Array): S-Vue broad bandwidth transducer for deep penetration in abdominal, OB/GYN exams.
CA3-10A (Curved Array): High-resolution S-Vue probe for versatile abdominal and OB/GYN imaging.
CA2-13M (Micro-Convex): Matrix array probe offering high-resolution 2D/3D/color imaging and penetration.
CV1-8A (Volume Curved Array): S-Vue 3D/4D probe for volumetric abdominal and OB/GYN evaluations.
EA2-11AR (Endocavity): Ergonomic design with balanced weight distribution for OB/GYN and urology.
EA2-11AV (Endocavity): Ergonomic forward-grip transducer built to reduce strain during extended pelvic/urologic exams.

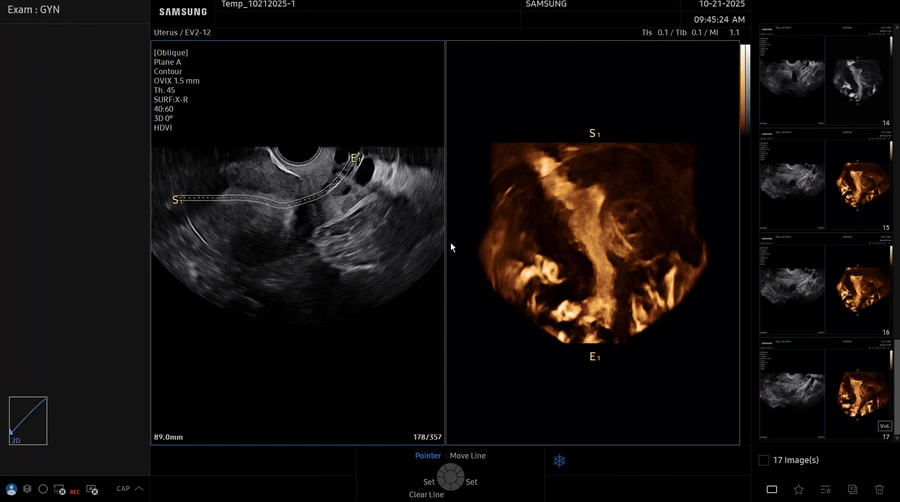

EV2-12 (Volume Endocavity): S-Vue 3D/4D micro-convex probe for volumetric pelvic and urologic imaging.
LM2-18 (Linear Matrix): High-frequency S-Vue probe for high-resolution superficial imaging.
Crystal Architecture™ & CrystalBeam™: Advanced beamforming beam-shaping engine and signal processing pipeline that deliver uniform image clarity, signal purity, and deep penetration across diverse patient body types.

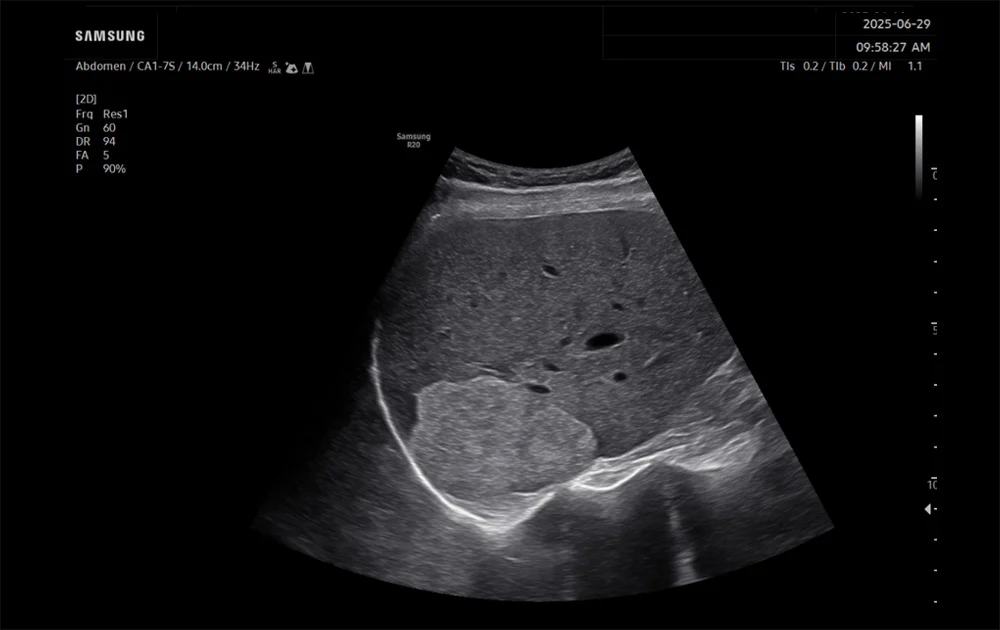

CrystalLive™ 2D & Color Engine: Enhanced 2D image processing and sensitive color Doppler algorithms that suppress noise, reduce speckle artifacts, and outline hemodynamics and tissue borders with high contrast resolution.
AI-Driven Clinical Decision Support:

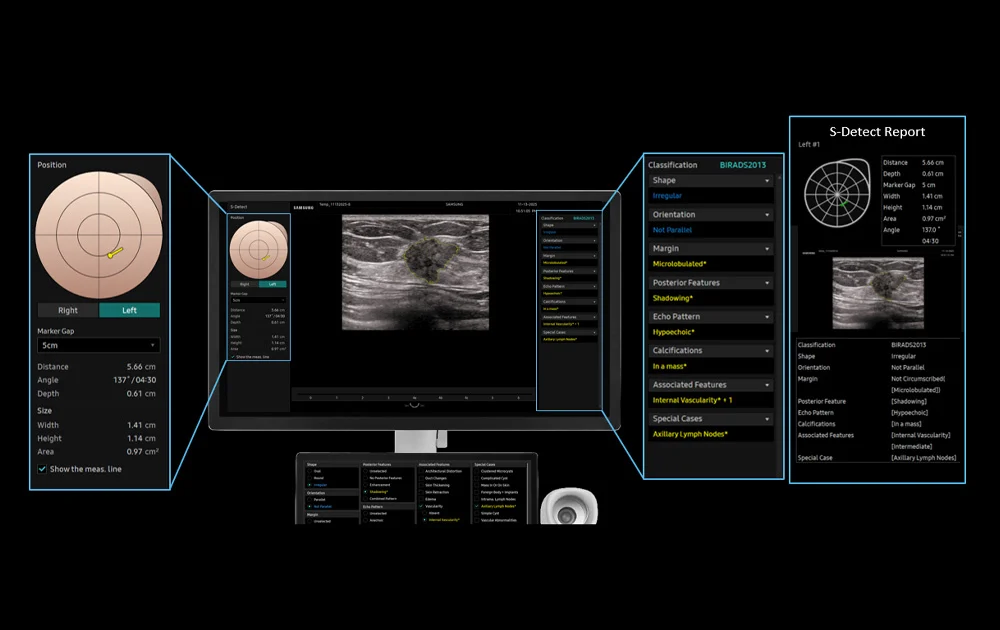

S-Detect™ for Breast & Thyroid: Intelligent AI algorithm that analyzes suspicious lesions, classifies tissue characteristics, and assists clinicians in standardized reporting (BI-RADS / TI-RADS).
BiometryAssist™: One-click automated fetal measurement tool that detects and calculates key fetal growth parameters in seconds.
Advanced Specialty Imaging Modes:

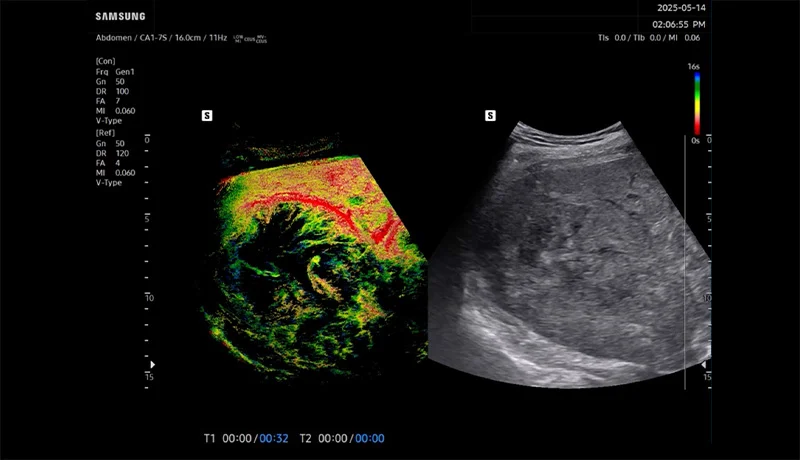

MV-Flow™: Microvascular flow imaging technology that visualizes low-velocity microcirculatory blood flow without blooming or velocity signal drop-off.
LumiFlow™: 3D-like color flow visualization that provides intuitive spatial depth perception of complex vascular structures.
S-Shearwave Imaging™ / Elastography: Non-invasive quantitative tissue stiffness measurement for objective assessment of liver fibrosis, breast lesions, and MSK pathology.
Display & User Interface:
Main Display: 23.8-inch high-resolution LED widescreen monitor mounted on a fully articulating, multi-jointed arm for ergonomic position adjustments.
Touch Panel: 14-inch full-color interactive LCD touchscreen with customizable layout, quick-tier navigation, and multi-touch gesture control.
Hardware & Transducer Architecture:
Active Probe Ports: 4 fully active, pinless, micro-connector illuminated transducer ports for effortless probe switching.
Gel Warmer: Integrated 3-level temperature-controlled gel warmer mounted directly on the console.
Ergonomics & Physical Design:
Console Ergonomics: Motorized vertical height adjustment, full-console swivel rotation, and lightweight maneuverable chassis with central locking caster wheels.
Digital Storage & Connectivity:
Internal Storage: High-capacity Solid State Drive (SSD) ensuring ultra-fast boot times, rapid patient data retrieval, and secure image storage.
I/O Connectivity: Multiple high-speed USB 3.0 ports, HDMI video output, audio line-out, Ethernet LAN interface, and optional integrated thermal printer.
DICOM 3.0 Compliance: Complete DICOM suit supporting Store, Print, Modality Worklist (MWL), MPPS, and Structured Reporting (SR).
Network Integration: Integrated Wi-Fi and cloud connectivity (Samsung Mobile Export / SonoSync™) for remote image review, tele-ultrasound collaboration, and seamless EMR/PACS integration.

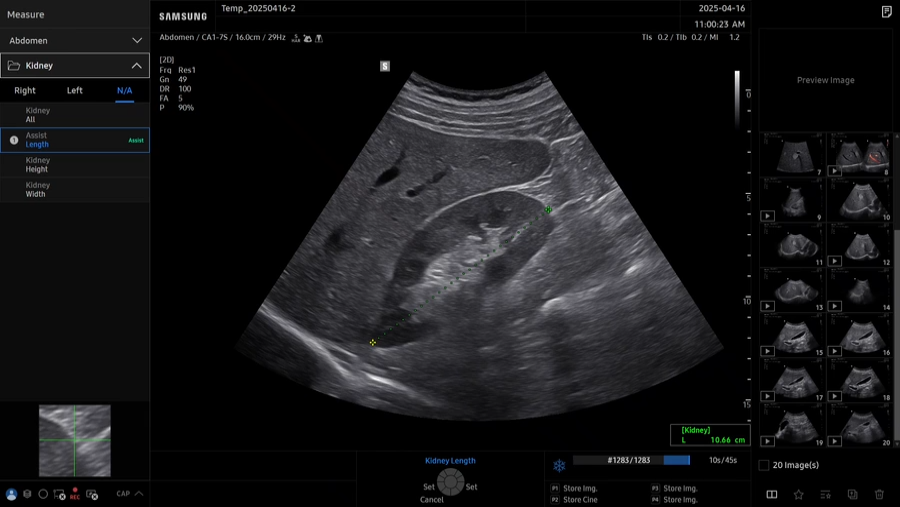

he Samsung Medison R20 leverages AI-assisted workflow engines and automated measurement protocols to reduce manual keystrokes and minimize inter-operator variability.
Automated Workflow & Measurement Tools:
HeartAssist™: Deep-learning AI feature that automatically recognizes cardiac views and calculates key adult and pediatric echocardiography parameters.
AutoEF: Automated Left Ventricular Ejection Fraction (LVEF) calculation based on global cardiac wall tracking.
AutoIMT+: One-touch automated measurement of Intima-Media Thickness on both anterior and posterior carotid walls for rapid cardiovascular risk assessment.
5D / Auto OB Suite: Automated 3D/4D volume biometry calculations including 5D CNS+ (fetal brain analysis) and 5D Heart Color™.
Clinical Reporting Suites:
Built-in structured reporting templates for Radiology, OB/GYN, Vascular, Cardiology, MSK, and Urology.
Customizable reporting with embedded ultrasound images, fetal growth velocity charts, and automated BI-RADS/TI-RADS scoring.
Direct DICOM SR export to PACS and PDF creation for seamless digital health record integration.
