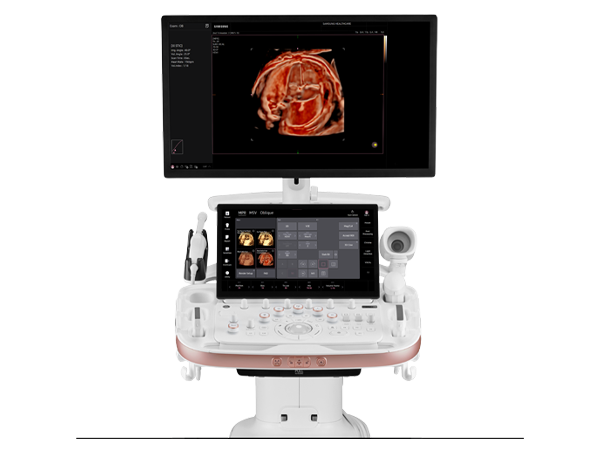

The Samsung HERA Z20 is an ultra-premium diagnostic ultrasound system engineered specifically for advanced women’s health, obstetrics, and gynecology applications. Built upon Samsung’s visionary Crystal Architecture™ and enhanced with next-generation deep learning artificial intelligence, the HERA Z20 delivers exceptional grayscale contrast, uniform spatial resolution, and high-frame-rate hemodynamic visualization.
CMV1-10 / CMV1-10Z Matrix Volume Transducer: Premium Electronic Matrix Array for Real-Time 3D/4D Obstetric Volumetrics & Structural Fetal Heart Evaluation
CV1-8B Volume Convex Array Transducer: High-Resolution 3D/4D Fetal Abdominal & Gynecological Imaging
CA1-7S / CA2-8A S-Vue™ Convex Array Transducer: Deep Abdominal, Obstetrics, and Gynecological Diagnostics
EV2-10S / V5-9 Endocavity Transducer: High-Frequency Endovaginal & Transrectal Pelvic Imaging
LA2-14A / LA3-22G High-Frequency Linear Array Transducer: Superficial Vascular, Small Parts, Breast, and Musculoskeletal Assessment
Crystal Architecture™ & S-Vue Transducer™ Technology: Combines single-crystal transducer technology with advanced signal processing to maximize bandwidth and signal-to-noise ratio, ensuring deep acoustic penetration without sacrificing superficial resolution.

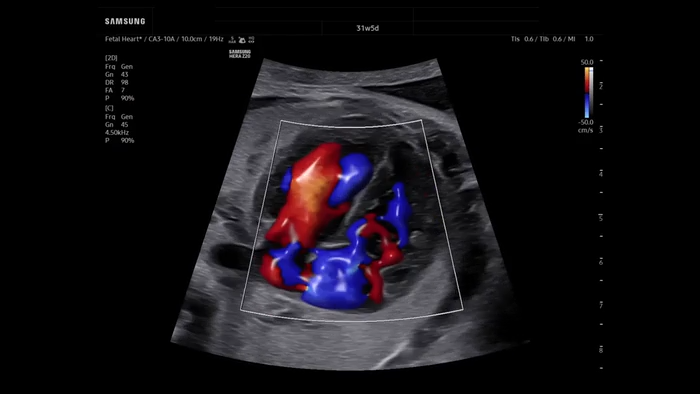

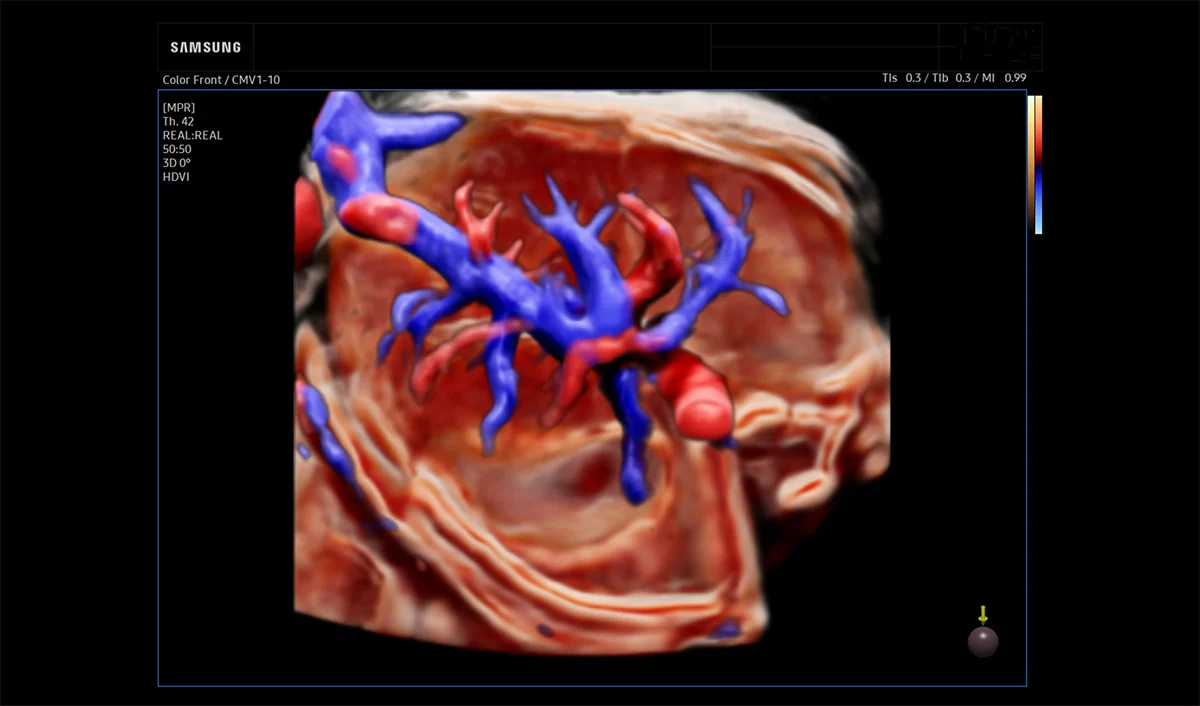

MV-Flow™ & Lumi-Flow™ Microvascular Imaging: Advanced hemodynamic mapping technologies that detect low-velocity microcirculatory blood flow. Lumi-Flow™ adds a 3D-like spatial display to visualize complex vascular structures intuitively.
Luminant™ & ShadowHDR™ Image Enhancement: Luminant™ applies real-time 3D-like depth shading to 2D image boundaries for enhanced fetal cardiac and neural outline delineation. ShadowHDR™ selectively balances high- and low-frequency ultrasound signals to eliminate acoustic shadows behind dense structures like the fetal spine or cranium.

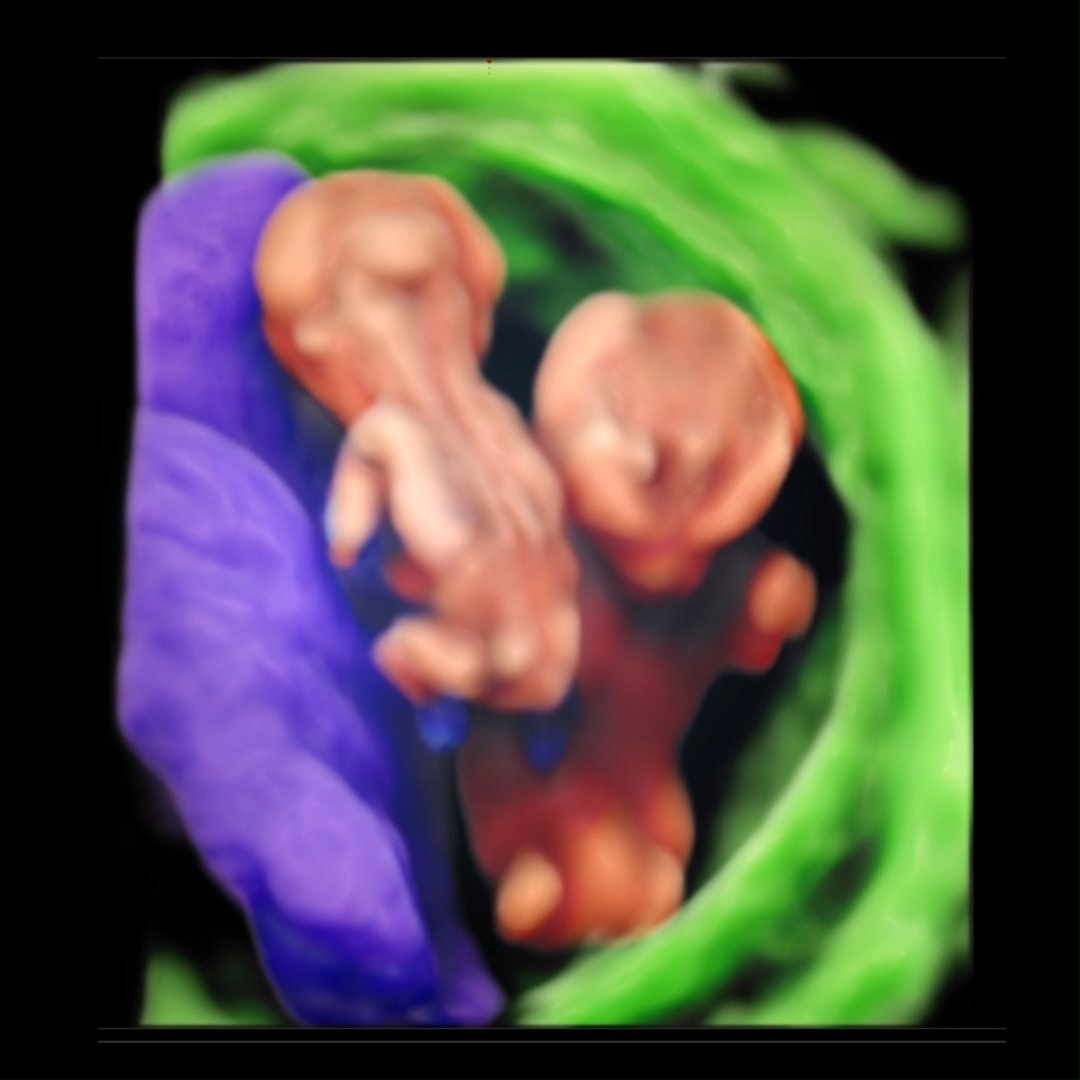

Deep Learning Artificial Intelligence Integration: Incorporates AI-driven tools including EzVolume™ for automated 3D fetal structure segmentation, UterineContour™ for automated endometrial centerline extraction and coronal flattening per ESHRE/ESGE guidelines, and Live ViewAssist™ for real-time anatomical view recognition.
RealisticVue™ & 3D/4D Volumetric Suite: High-definition volume rendering that simulates customizable light sources to display intricate surface anatomical details with realistic depth perception.
Display & Control Panel:
27-inch high-resolution OLED main monitor providing deep black levels, wide viewing angles, and superior contrast dynamics.
15.6-inch tilting capacitive touch panel with a customizable, intuitive control interface.
Fully motorized height-adjustable and rotatable control panel designed for optimal scanning ergonomics.
Transducer System:
4 active, micro-pinless transducer ports ensuring seamless probe switching and signal fidelity.
Compatible with advanced matrix array transducers (including the CMV1-10 volumetric matrix probe) and S-Vue™ single-crystal probes.
Digital Storage & Connectivity:
Integrated high-speed Solid-State Drive (SSD) for instantaneous boot times, fast study retrieval, and continuous high-frame-rate cine loop storage.
Full DICOM 3.0 support (Worklist, Store, Print, MPPS, Storage Commitment).
Built-in Wi-Fi module and SonoSync™ real-time image sharing and tele-ultrasound streaming platform.
I/O Ports & Hardware:
Multiple USB 3.0 ports for rapid external data transfer.
HDMI and DisplayPort video output terminals for secondary diagnostic displays.
Onboard battery backup system supporting mobile cart transport without shut-down.
The Samsung HERA Z20 features a comprehensive suite of AI-driven measurement automation tools and clinical workflow protocols designed to reduce exam times and optimize diagnostic consistency.
BiometryAssist™: One-click deep learning algorithm that automatically detects and measures standard fetal biometric parameters (BPD, HC, AC, FL) with high reproducibility.
HeartAssist™: Deep learning tool that automatically classifies fetal cardiac views and places standardized measurement calipers for rapid fetal echocardiography screening.
UterineAssist™ & IOTA-DRrisk: Automatically measures uterine size and morphology to identify structural abnormalities, paired with integrated IOTA (International Ovarian Tumor Analysis) risk scoring for ovarian mass assessment.
EzCheck™ & EzReport™: Automated exam protocols that ensure complete anatomical checklist coverage and generate structured diagnostic reports for hospital PACS and EMR integration.
